Error Coin Essentials introduces the core concepts behind coins that didn’t come out quite right. These articles provide a practical foundation for collectors who want to understand how errors happen, how to identify them, and how to collect them. With strong collector demand and wide variety, error coins remain one of the hobby’s most engaging fields.

---

Throughout its long history, the U.S. Mint has employed both traditional and inverted die setups, periodically flipping the position of the obverse die. From 1946 until the last decade of the 20th century, the obverse die was invariably employed as the hammer die for all denominations and quality levels (business strikes to proofs).

Traditional & Inverted Die Setup

The hammer die delivers the impact to the planchet while the anvil die absorbs it. But this doesn’t necessarily mean that the hammer die always thrusts downward toward the anvil die. In modern high-speed Schuler presses, the hammer die thrusts horizontally. And in one Graebner press model (used in the 1970s to strike large-diameter coins like Eisenhower dollars), the hammer die thrust upward.

Indian Head nickels (1913-38) and Liberty Head dimes (1916-45) were always, or nearly always, struck with the inverted die setup (reverse die as hammer die). ANA President Mark Lighterman claims to have seen some Liberty Head dimes that were struck with the traditional setup (obverse die as hammer die), but I haven’t seen any myself.

Until recently, it was assumed that the Schuler press was always associated with both a horizontal stroke and the inverted die setup. However, numismatic researcher Pete Apple has been collecting certificates of authenticity that accompany defaced dies sold to the public (CoinWeek, February 3, 2026). Those certificates reveal that some Schuler presses operated with a vertical stroke.

Determining Die Setup

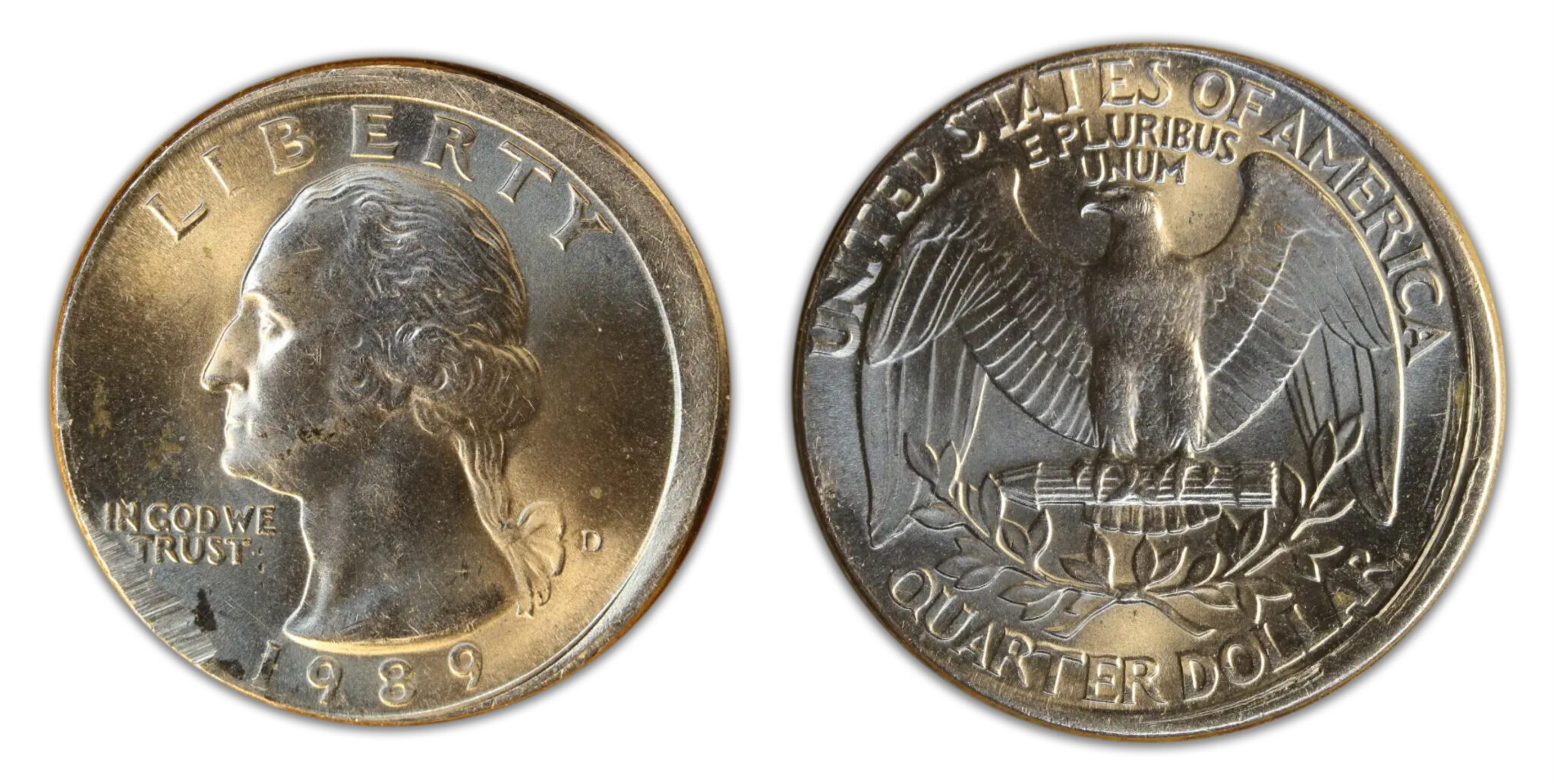

Schuler presses were first acquired by the Denver Mint sometime before October 1987. Schuler presses were also scheduled to be installed at the Philadelphia Mint in 1989, no later than September 30. The earliest physical evidence for use of the inverted die setup is in a 1989-D quarter dollar that takes the form of an uncentered broadstrike (pictured below).

We rely on certain minting errors to determine die setup because normal coins struck with the inverted die setup are indistinguishable from those struck with the traditional setup. This specimen provides three pieces of evidence. First, the design rim is much stronger on the reverse. Second, we see multiple single-downstroke strike lines (a total of four) that extend from 2:45 to 4 o’clock on the right side of the reverse. This manifestation of die instability is only known to occur on the face struck by the hammer die. Finally, there appears to be a bit of collar contact at the outer margin of the unstruck crescent on the obverse. Since the collar surrounds the anvil die, any trace of collar contact will indicate which die acted as the anvil die.

Related Errors

Many other errors and error-related effects will also pinpoint the die setup, such as:

• The presence of a “partial collar” error. The part of the edge that was in contact with a partially deployed collar will lie next to the face struck by the anvil die.

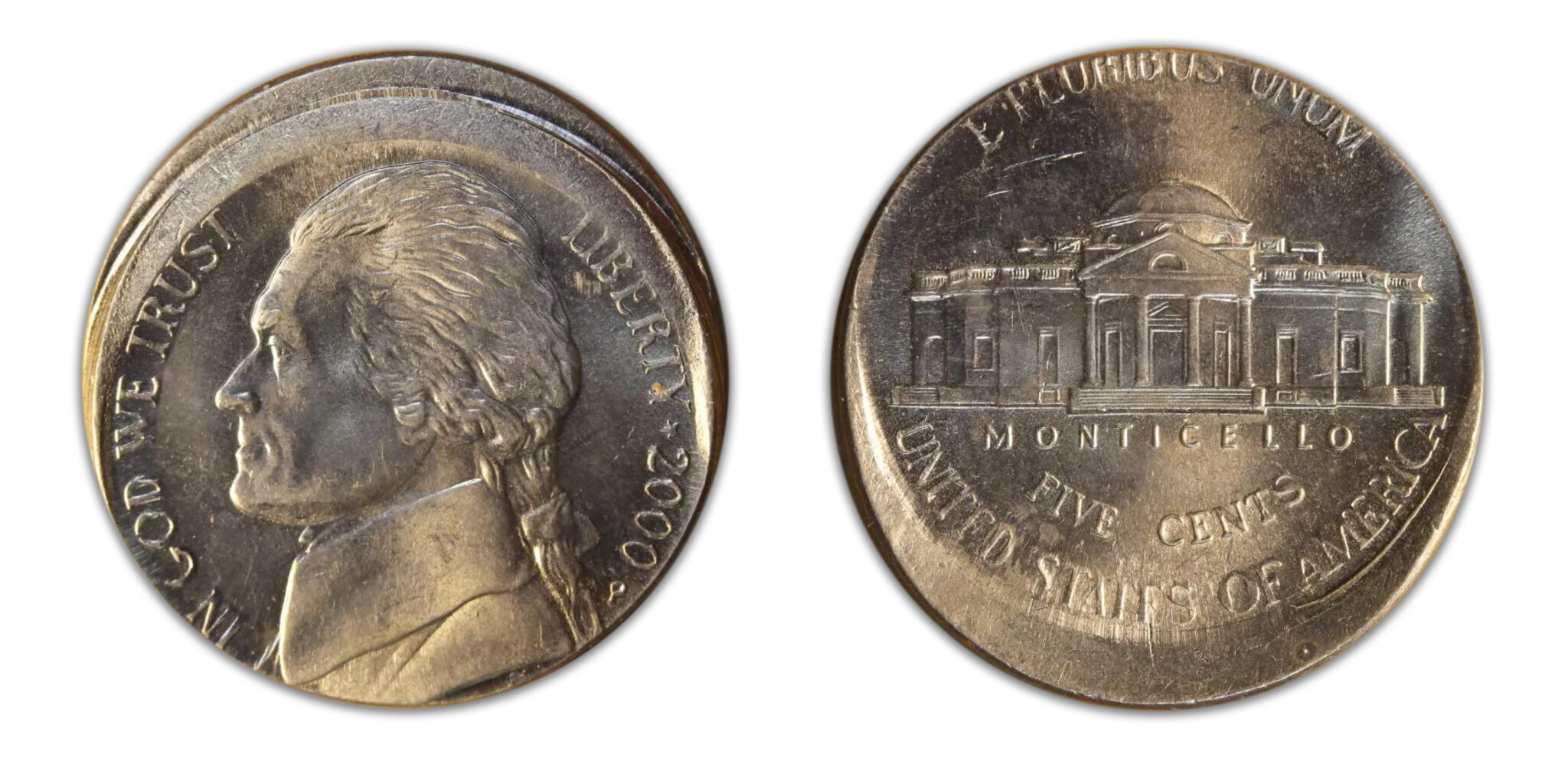

• The presence of a collar scar on off-center strikes and uncentered broadstrikes. Whichever face carries a collar scar (or any sign of collar contact) will be the face struck by the anvil die (pictured below).

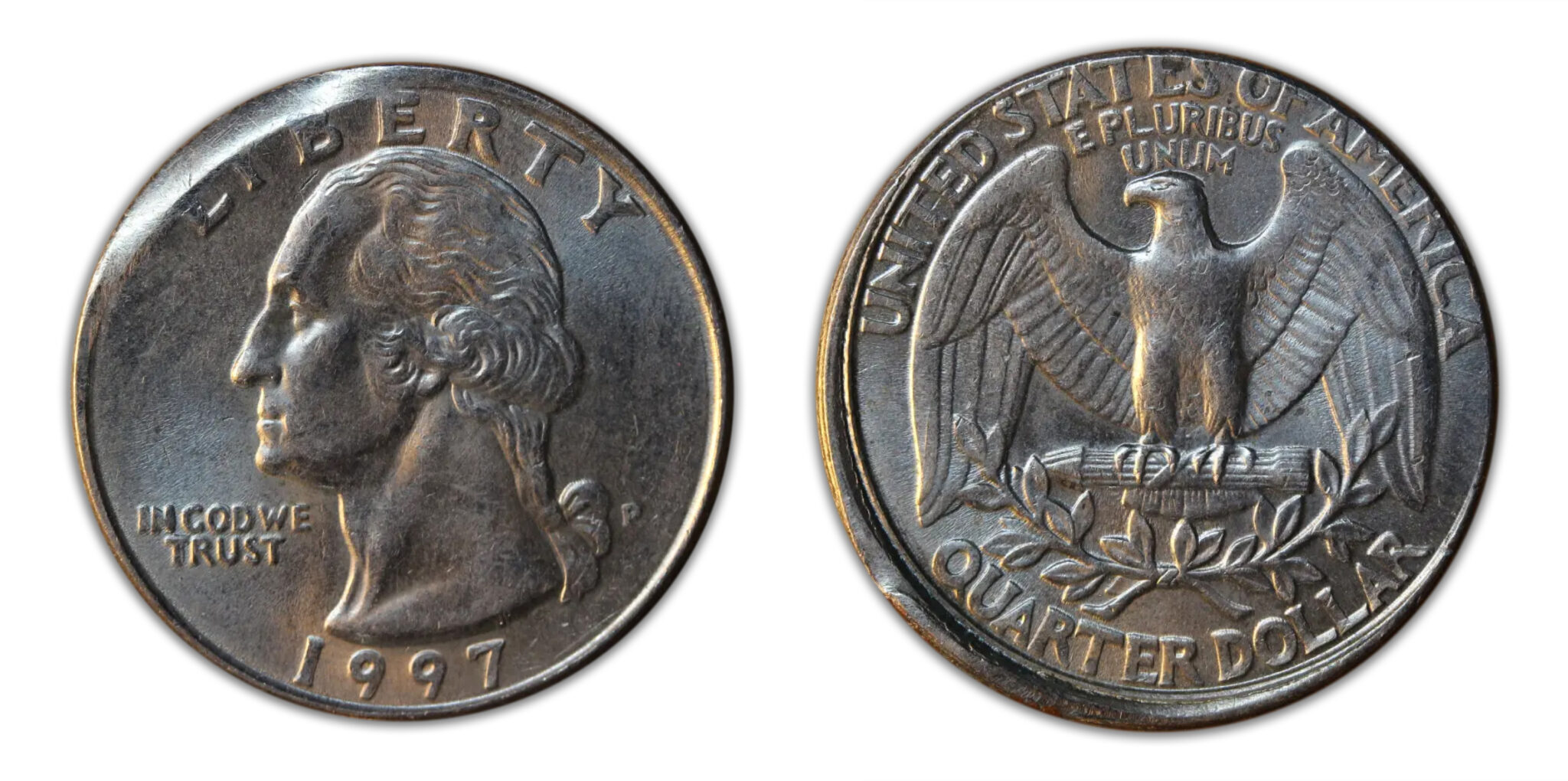

• Stiff collar errors. Such errors occur when an off-center planchet or coin fails to depress the collar during the strike. This leaves the coin with a rounded shoulder on the face struck by the anvil die. The opposite face shows marked cupping toward the hammer die or, if the collar remained fully deployed, a thick vertical flange that extends toward the hammer die (pictured below).

• Direction of cupping. This usually (but not invariably) points in the direction of the hammer die.
• Saddle (tandem) strikes. When a planchet receives simultaneous strikes from two adjacent die pairs, the unstruck interval between those strikes often buckles and forms a “hump.” The hump almost always points toward the hammer die.
• In-collar indents and partial brockages. When a coin is struck fully in-collar while partially covered by a planchet or coin, the impression left by the disc will always appear on the face struck by the hammer die.

Often, multiple lines of evidence are necessary to establish the die setup.

The Prevalence of the Inverted Die Setup

While modern use of the inverted setup started in the Denver Mint in 1989, it remained quite rare for several years. This suggests that the Schuler presses at both Denver and Philadelphia were using the traditional die setup.

It’s not until 1992 that we have our next error coins struck with the inverted setup: two 1992-D quarters that show a reversed partial collar. Additionally, there are a few 1994-D dimes with reversed partial collars. Evidence for the inverted setup becomes more common in 1996, with indisputable examples still restricted to the Denver Mint. There is one double-struck 1995 cent (die-struck on both faces) that shows strong cupping toward the reverse face. This provides intriguing but inconclusive evidence that inverted dies were in use in Philadelphia at this time. Indisputable examples from Philadelphia don’t appear until 1997. This was a breakout year for the inverted die setup, with more examples emerging from both mints.

Transition to Inverted Die Setup

The changeover from the traditional setup to the inverted setup was slow and never complete. Both setups were in common use from 1998 to 2001. The Philadelphia Mint fully and permanently adopted the inverted setup in 2002 for all business strikes except half dollars. The Denver Mint was still producing a dribble of business-strike error coins with the traditional setup from 2002 to 2004 and in 2007, after which the supply dries up.

Half dollars remained an exception. I have seen partial collar errors in 2021-P and 2024-P half dollars that reflect continued use of the traditional setup. I would hazard a guess that the limited mintages of these noncirculating half dollars permit older, slower Bliss presses to be recruited for the task. This isn’t to say that all post-2001 half dollars were struck with the traditional setup. There are some 2002-P half dollars with an intact, undamaged collar chip next to the reverse face that confirms the inverted setup. Proofs are also an exception. I have not yet seen a proof error that was struck with the inverted setup.

Inconsistencies

Just as we cannot assume that all Schuler presses were fitted with inverted dies, we cannot assume that all older Bliss presses used the traditional setup. There is a multi-error, multi-struck 2000-D saddle-struck cent that shows use of the inverted die setup (Coin World, September 19, 2016). Schuler presses operate with a single die pair and therefore cannot produce saddle strikes. Some Bliss presses striking lower denominations (1- to 10-cent pieces) employed two adjacent die pairs (a dual press) or four die pairs arranged in two couplets (a quad press). While several undated saddle strikes with inverted humps are known, this feature by itself is not determinative, as the hump can sometimes bulge toward the anvil die in pre-1989 coins.

The reason why the mint decides to flip the position of the hammer die isn’t at all clear. It doesn’t seem to have anything to do with the design, as both traditional and inverted setups coexisted for many years.

---
