Error Coin Essentials: Doubling
Photos: Mike Diamond (cent) & Getty Images/Natalya Bosyak
Just Starting Out

Error Coin Essentials: Doubling

Published April 22, 2026 | Read time 4 min read

By Mike Diamond

Getting your Trinity Audio player ready...

Error Coin Essentials introduces the core concepts behind coins that didn’t come out quite right. These articles provide a practical foundation for collectors who want to understand how errors happen, how to identify them, and how to collect them. With strong collector demand and wide variety, error coins remain one of the hobby’s most engaging fields.

I frequently encounter novice collectors who ask whether their coins show doubling and how much they might be worth. This question opens a can of worms because there are well over a dozen forms of doubling known. An exhaustive roster can be found on the Comprehensive Error-Variety Checklist on error-ref.com.

What most questioners really want to know is whether they’ve stumbled across a double strike or a doubled die (hub doubling). The answer to both is often “no.”

The three most common forms of doubling that collectors encounter are those caused by die wear (die-deterioration doubling), those related to the presence of zinc plating (plating-disturbance doubling), and those caused by press vibration and instability (machine doubling). These are not mutually exclusive, as more than one form of doubling can appear on the same face of the same coin. Let’s consider the first two categories.

Die-Deterioration Doubling

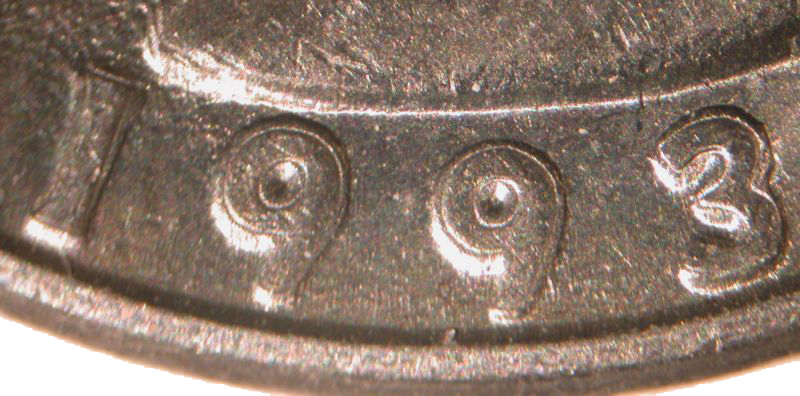

This 1993 quarter dollar shows the raised form of die deterioration doubling.  While the raised doubling in this specimen surrounds each numeral, other examples show the doubling restricted to one side. (Photo: Mike Diamond)

Die-deterioration doubling develops as the surface of the die face is remodeled in the course of striking hundreds of thousands of planchets. Raised doubling, as seen in the 1993-P quarter above, is the form most frequently encountered. Another example is evident on the 1987-D cent pictured below.

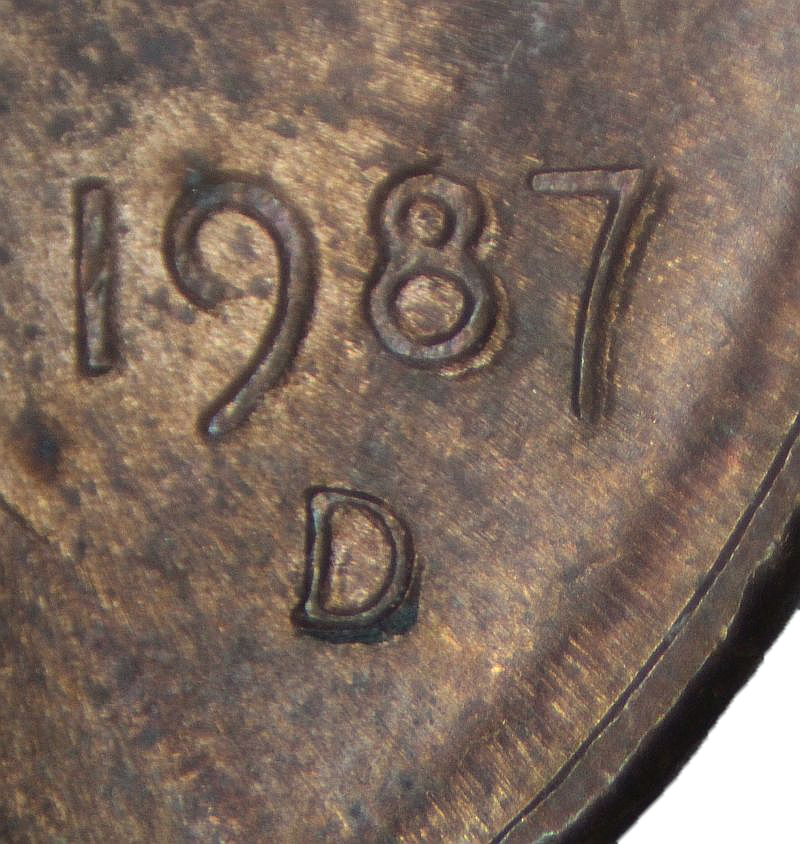

Die-deterioration doubling appears along the right side of the last two digits of this 1987-D cent. It is next to a swollen peripheral field, which is another manifestation of die deterioration. (Photo: Mike Diamond)

Incuse (sunken) die-deterioration doubling will also sometimes develop, as on the reverse of this 2007-D Idaho quarter.

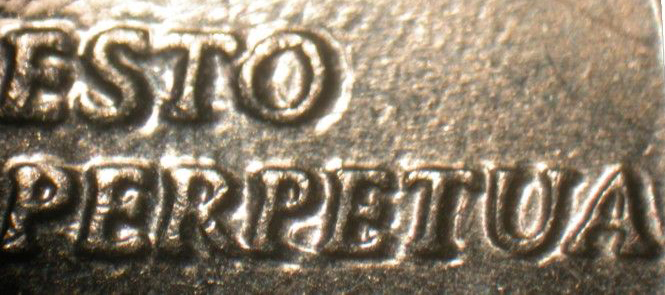

The reverse of this 2007-D Idaho quarter dollar shows an incuse form of die-deterioration doubling. (Photo: Mike Diamond)

Plating-Disturbance Doubling

On zinc cents, the raised form of die-deterioration doubling is sometimes confused with an unrelated form of doubling known as plating-disturbance doubling. In plating-disturbance doubling, the plating next to raised design elements lifts up as the result of tensile stresses generated during the strike. Shown below is a 1993-D cent with plating-disturbance doubling affecting E PLURIBUS UNUM.

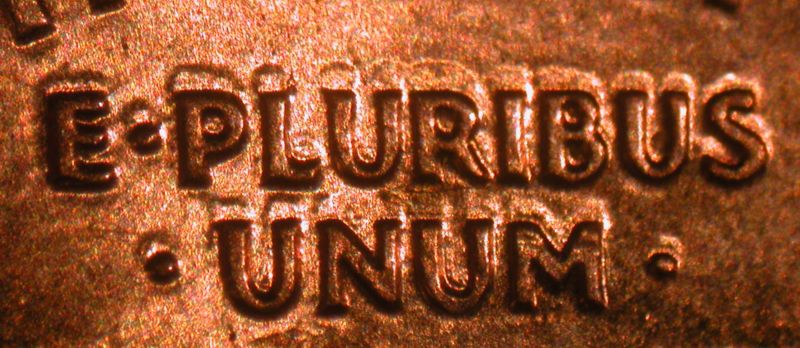

On this 1993-D cent, the motto is affected by plating disturbance doubling.  This resembles, and is often confused with, the raised form of die-deterioration doubling. (Photo: Mike Diamond)
This massively expanded, broadstruck 1999 cent shows a dramatic case of split-plating doubling.  Split plating, especially when found on broadstruck and off-center cents, is often mistakenly interpreted as evidence of a double strike. (Photo: Mike Diamond)

Plating-disturbance doubling is closely related to split-plating doubling, where the copper plating next to raised design elements splits as the result of those same tensile stresses. Shown above is a massively broadstruck 1999 cent with a dramatic case of split-plating doubling. Such errors are often mistaken for double strikes, even by grading services. Split-plating doubling is, in turn, closely related to torn-plating doubling, where the copper plating snags on the edges of die recesses as the coin expands during the strike. Shown below is an example of torn-plating doubling on a 1994 cent.

On this 1994 cent, tiny letters of exposed zinc appear above the motto. The sharp edges of the letter recesses tore open the zinc plating during the coin’s expansion during the strike. (Photo: Mike Diamond)

Conclusion

None of these forms of doubling carry much monetary value, but their educational value is inestimable. They provide a window into both the minting process and the material properties and limitations of die steel and coin metal.

Mike Diamond has been collecting, researching, and writing about error coins since 1997.  Since November 2009, he has written a weekly column for Coin World (“Collectors’ Clearinghouse”) that focuses on minting errors and die varieties.  Prior to that, he was responsible for dozens of articles that appeared in CONECA’s specialty journal Errorscope.  He created and contributed most of the content found in The Error-Variety Ready Reference.  Over the past 28 years, he has discovered or described well over 100 new error types.
